Castings

Synergy Global Sourcing is your right partner to source wide variety of castings from India. All castings can be delivered in fully machined on CNC machines and surface treatment with excellent in-process and final quality control.

Our manufacturers are well equipped, established and certified to ISO 9001-2000 and TS16949 systems. Castings conform to various International standards such as ISO, BS, ASTM, ANSI, DIN, JIS, etc.


Investment valve castings
Investment valve castings
Investment Pump product
Investment Pump product
Investment casting general engineering part
Investment casting general engineering part
Investment valve castings
Investment valve castings
Gravity Die casting fly wheel housing
Gravity Die casting fly wheel housing
Gravity Die casting cylinder block
Gravity Die casting cylinder block
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Pressure die cast aluminium
Investment casting Copper
Investment casting Copper

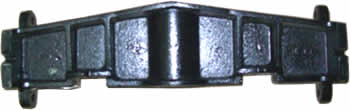

Gravity Die casting Grey iron
Gravity Die casting Grey iron
Gravity die casting Grey iron Milling
Gravity die casting Grey iron Milling
Gravity die casting Grey iron
Gravity die casting Grey iron
Milling SG iron casting
Milling SG iron casting
Milling Grey iron Air compressor
Milling Grey iron Air compressor
Milling
Milling
Milling Oil seal plates
Milling Oil seal plates
Milling transmission part part
Milling transmission part part
Milling transmission part
Milling transmission part
Milling bearing part
Milling bearing part
Milling
Milling
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting
Plumbing brass casting

Types of Castings

Process Materials
Grey iron(All Grades) Ductile iron Malleable iron Steel Stainless steel Aluminum Zinc Brass and bronze Gun Metal Hastelloy
Sand Casting GG20, 25, 30, FG150, 200, 260, 300,  ASTM A48(30A, 35A,  40 A) GGG30, 40, 50, 60, 70, ASTM A536(60-40-18, 65-45-12), 400/15, 500/7, 600/3 GTS-35-10, 70-02, ASTM A47(32510, 35018), ASTM A220(40010, 90002) ASTMA 216(WCA, WCB, WCC), 217(WC1, WC4, WC5), 297,   352(LC1, LC2, LC3), 487, 436, 439, 743,                  DIN1681, 17245, IS276, 2708 SS304, SS310, SS316, HH, HK, HT grades DIN1725(A-9)   C6801, C6802, C6803, C6804, C23000, C6931, C6932 and Bronze- Lead Bronze, Phosphor Bronze,   Aluminum Bronze, Manganese Bronze G1, G2, G3, LG1 , LG2, LG3, LG4 A494(CW-12MW, CY-40, CZ-100, M-35-1, M-35-2, M-30C, N-12MV, N-7M)
Shell Moulding GG20, 25, 30, FG150, 200, 260, 300,   ASTM A48(30A, 35A,   40 A) GGG30, 40, 50, 60, 70, ASTM A536(60-40-18, 65-45-12), 400/15, 500/7, 600/3 GTS-35-10, 70-02, ASTM A47(32510, 35018) ASTM A220(40010, 90002) ASTMA 216, 217, 297, 351, 352, 487, 436, 439, 743,                  DIN1681, 17245, IS276, 2708
Die Casting (Gravity, Low and High pressure) GG15, 20, 25, 30,         ASTM A360, 380, 390, 413 (ADC-12, ADC-14), LM 4, 6, 9 Zamak ZA3, ZA8, ZA12, ZA27, Zinc alloy 2, 3, 5, 7
Investment castings (Lost Wax Method) GG20, 25, 30, FG150, 200, 260, 300,   ASTM A48(30A, 35A,   40 A)     ASTM A27, 216(WCA, WCB, WCC), 217(WC1, WC4, WC5), 356(1, 9, 10)                           732(1 A, 2A , 3A),   148(90-60, 105-85, 165-150, 160-145) CA15, A, B, C, D, CF3,   CF3 A, CF3 M, CF8, CG12, CF20, CK20, HK30, 40, HT40,         17-4 PH ASTM A360, 380, 390, 413 (ADC-12, ADC-14), LM 4, 6, 9    C6801, C6802, C6803, C6804, C23000, C6931, C6932 and Bronze- Lead Bronze, Phosphor Bronze,   Aluminum Bronze, Manganese Bronze  G1, G2, G3, LG1, LG2, LG3, LG4  A494(CW-12MW, CY-40, CZ-100, M-35-1, M-35-2, M-30C, N-12MV, N-7M)
Centrifugal castings GG20, 25, 30, FG150, 200, 260, 300, ASTM A48(30A, 35A,   40 A) GGG30, 40, 50, 60, 70, ASTM A536(60-40-18, 65-45-12), 400/15, 500/7, 600/3     SS 304, 316, 347, 205, CA15, A, B, C, D, CF3,   CF3 A, CF3 M, CF8, CG12, CF20, CK20, HK30, 40, HT40,           17-4 PH  ASTM A360, 380, 390, 413 (ADC-12, ADC-14), LM 4, 6, 9

Surface finishing capabilities:

We can arrange third party lab testing of test bars as an independent quality control measure in addition to foundry test certificates.

Third party inspection capabilities

Metallurgical testing Methods:

Mechanical test equipment:

Non Destructive test:



For more information about sourcing castings from India contact us
